SPI401 Alternative Eaton/Dana Spicer Seal Installation Tool Kit

SPI401 Alternative Dana Spicer Seal Installation Tool Kit

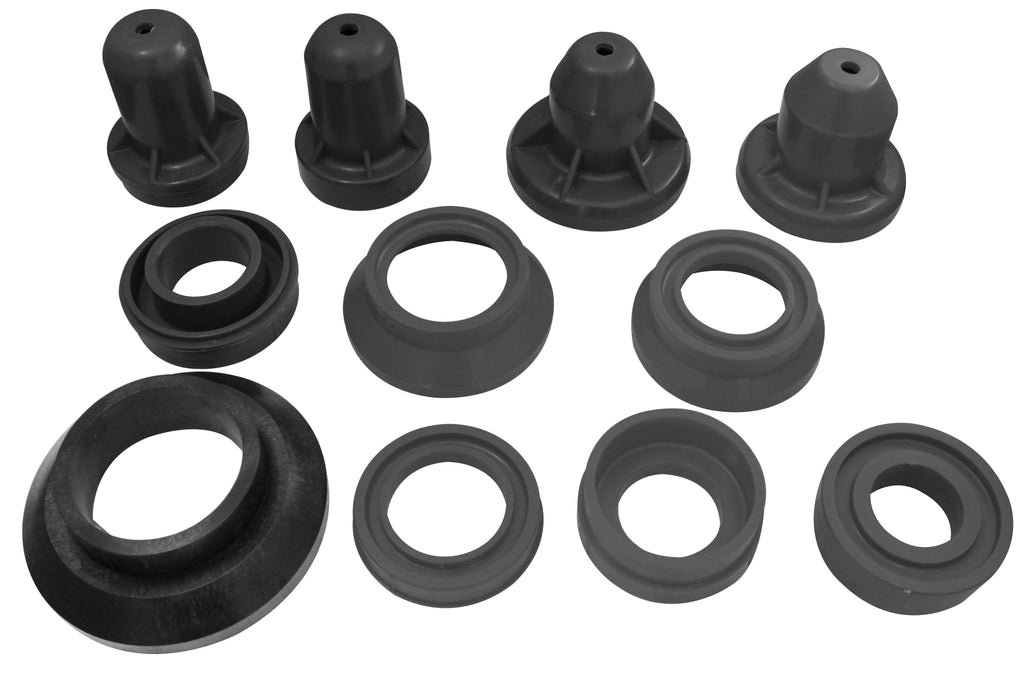

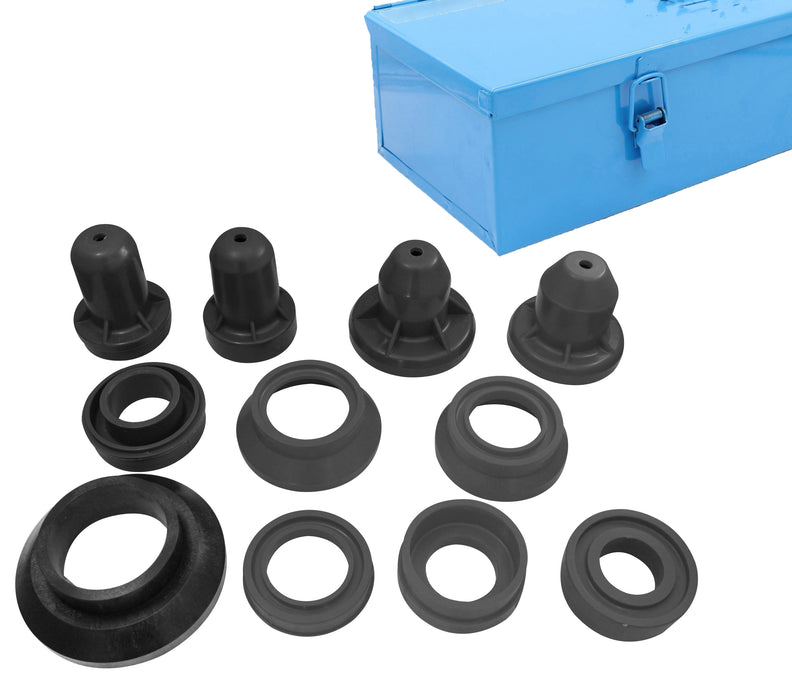

Dana Spicer input shaft seal, output shaft seal and pinion seal installer tool kit.

Includes:

• 126917 Driver for input seal
• 210751 Driver for output seal
• 210749 Driver for Input and pinion seal
• 131471 Driver for output seal
• 10095470 Insert for Input and pinion seal
• 10021492 Insert for Input and pinion seal
• 128706HX Insert for output seal
• 10021495 Insert for output seal
• 210750 Insert for input seal
• 10021493 Insert for Input and pinion seal
• 10021494 Insert for output seal

Applications:
Tandem Axle Models

• DS341, DS404, DS454, DS405, DSP40, DSP41, DSP44, DSH40, DSH44 and DST40 (Use tools 126917, 10021493 and 128706HX)
• D40-156 (Use tools 126917, 10021493, 10021494 and 10021492)
• D40-155 (Use tools 126917, 10021492 and 10021495)
• D40-170, D46-170, D50-170, D52-190, D60-190, D70-190, D52-590 and D60-190 (Use tools 210749, 131471 and 10095470)
• DS461, DS462, DS463, DS581, DS601, DD461, DD463, DD581, DD601, DT461, DT463, DT581, DT601, DP461, DP463, DP581, DC461 and DC463 (Use tools 210749, 210751 and 210750)

Single Axle Models

• S12-110, S14-110, S14-111, S16-130, S17-140 and S19-140 (Use tool 126917)
• S21-060B, 17060S, 19060S, 21060S, 22060S and 23060S (Use tool 126917)
• S23-070B, S21-170, S23-170, S26-170, S23-172, S21-190, S23-190, S26-190, S30-19, S30-590, S35-590, S21-175, S23-175 and S26-175 (Use tools 210749 and 10095470)
• 23080T, 23082T, 26082T, 23130S, 23137S and 23105S (Use tool 210749)
• 19055T, 21060T 23060T, 21065T and 23060T (Use tool 126917)
