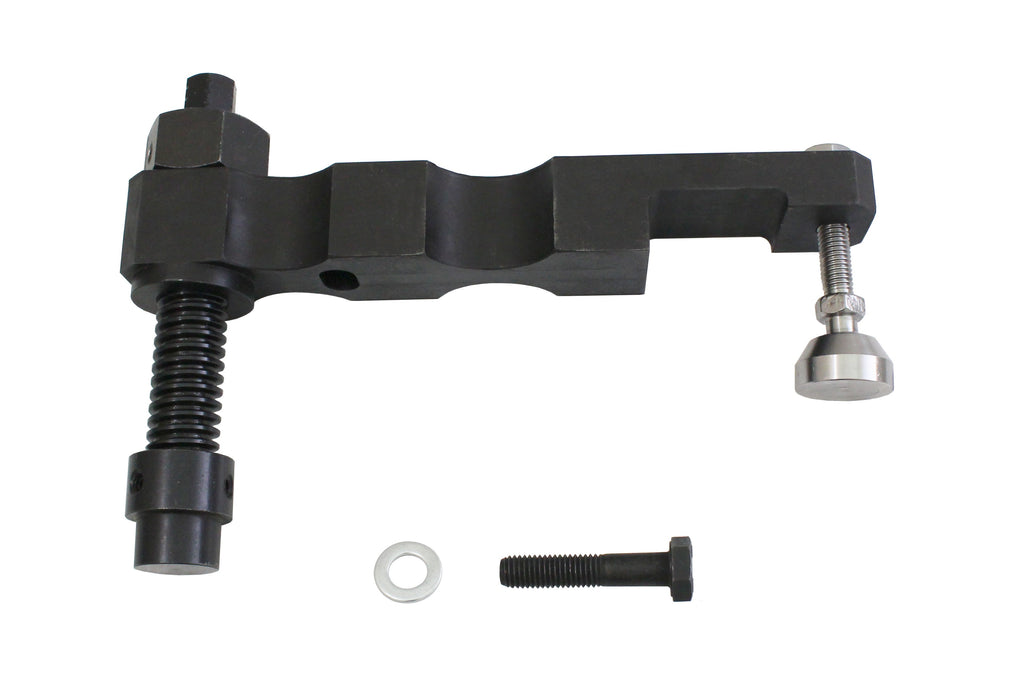

- The kit is used to install the fuel injector sleeve expansion ring (to eliminate leakage between the fuel and coolant systems).
- The kit installs a special ring that expands the top of the sleeve to regain sealing capacity, preventing a cylinder head replacement due to leaking sleeves.
- Applications:
- ISX15 CM2250
- ISX15 CM2250 SN
- ISX15 CM2350 X101
- PowerGen QSX15 CM2250
- PowerGen QSX15 CM2250 ECF
- QSX15 CM2250 ECF
- QSX15 CM2250 X115
- QSX15 CM2350 X105
- QSX15 CM2350 X106
- X15 CM2350 X116B
- X15 CM2350X114B
- OEM no. ref: 5394735
- Works with retaining/expansion ring 4312298
- This kit includes
- 3910497 Socket Head Cap Screw
- 3946377 Hexagon Head Cap Screw
- 3968031 Plain Washer
- 5394731 Installer Plate
- 5394732 Installer Plate
- 5394946 Roll Pin
- 5394947 Heavy Hexagon Nut
- 5395005 Installer Ompnent
**Retaining Ring sold separately 4312298**
*** To replace cups (WITH HEAD ON VEHICLE) you will need FEPRO9071 ***
